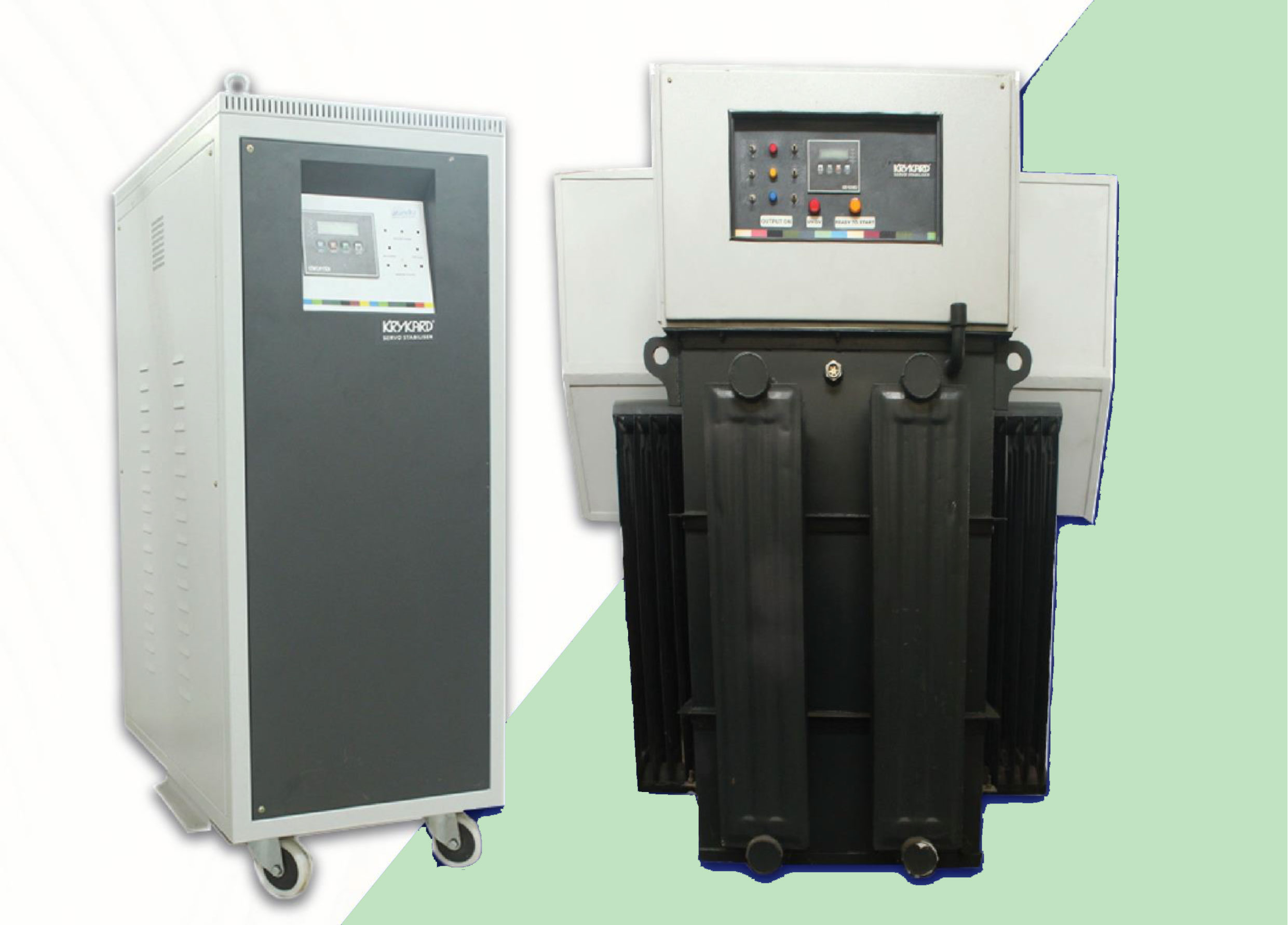

PARAMETER	3 PHASE UNBALANCED AIR COOLED	3 PHASE UNBALANCED OIL COOLED
Rating (kVA)	3 - 300	3 3000
Type of Cooling	Air	Oil
Input Voltage Range (V L-L)*	310 - 480 / 340 - 480 / 360 - 460 / 360 - 480
Output Voltage (V L-L)*	415 (380V/400V - optional)
Output Voltage Regulation	1% of nominal output voltage
Input Frequency Range	47Hz -53Hz
Efficiency	>97%
Effect of Load Power Factor	Nil
Waveform Distortion	Nil
Type of Servo Control	Micro Controller based True RMS sensing and correction
Servo Motor Drive	Triac based drive for AC Step Synchronous motor
Under/ Over Voltage Cutoff	Electronic cutoff circuit with graded time delay, set @ +5% /-10% of nominal output voltage
Overload Cutoff	CT based Electronic cutoff circuit with graded time delay set @ 110% of rated full load current
Short Circuit Protection	MCB / MCCB provided upto 100 kVA. Above 100 kVA MCCB optional
Single Phasing Prevention	Provided
Phase Reversal Trip	Provided
Stabiliser Bypass	Provided up to 50 kVA 3-phase; Optional > 50 kVA
Transient Suppression	Spike Suppression through MOV is provided (Surge Arrestor is optional)
Emergency Off Switch	Provided
Frequency Cutoff Protection	Optional
Input High Voltage Trip	Optional
Event Log	Optional - Up to 100 events with Date & Time stamp
Resetting Mode	Manual / Auto option provided with programmable time delay
Display Type	2 Line LCD Panel
Parameters Displayed	Input & Output Voltages (Line & Fault Phase), Output Currents & Frequency Annunciation
LED Indications	Input Status - 3-Colour LED - Green - Normal; Output Status - 2 -Colour LED - Yellow - Out of Range; Red - Unsafe (Trip) Green - Output On; Red - Output Trip
Input / Output Terminations	Bolted Terminals up to 100kVA,Busban 125kVA and above
